AutoPick GTi
What's unique about this shaker?
AutoPick GTi is a high-end shaker designed to vibrate any type of olive or nut tree effortlessly, without damaging the integrity of the tree.
The main difference with the GT model is that the GTi does not incorporate the telescopic arm and it is the ideal shaker to work with single-trunk trees. It has been redesigned to increase the working speed and reduce the lever wight towards the tractor.
It can be front or rear-mounted with possibility to attach a PARK umbrella for easier recollection, with or without peelers.
Optimal vibration after 30 years of experience
Optimized vibration for best perservation of the trees. Takes care of all branches, trunk and roots.
Ideal for trees with more than one trunk, from 8 to 50 cm in diameter
Single head especifically designed to shake both young and adult trees
Adaptation to the tree thanks to its self-adjusting floating head
Adapts to the inclination and irregularities of the trunk
Maximum profitability for the farm
Production increases year after year, product is left clean and ready for sale or subsequent processing
Maximum efficiency in harvesting large olive and nut quantities
No damage of the young stem, branches, leaf, bark or root
Perpendicular fall of the product
Due to its rapid start, it causes a vertical fallout without spreading the harvested product
Independent hydraulics and electronics
90 HP tractor is enough for hydraulic power
Fully versatile machine
Both front and rear coupling. Possibility of PARK collecting umbrella with 400 kg capacity
Configurations
Choose the right set-up for your operation
Front or rear mounting
without umbrella
90 HP front
80 HP rear
Front or rear mounting
with umbrella
120 HP front
110 HP rear
Front or rear mounting with
umbrellas and peelers
120 HP front
110 HP rear
Key features
Clamp
The clamp is equipped with natural rubber studs. Its geometry allows its mounting position to be varied and adapt better to the surface and size of the trunk.
The studs are equipped with protectors, and both the studs and the protectors have different hardnesses to better adapt to all types of plantations depending on the harvest season.
Adjustable head tightening pressure to avoid damaging the tree bark. Timed self-tightening function when vibration starts.
PARK
The PARK model can be attached to all our vibrators
The PARK inverted umbrella offers an effective gathering method that doesn’t harm the harvested fruit or nut in any way.
Manufactured with the most resistant fabrics, ensures maximum recollection for years to come. This umbrella can be attached to all Autopick shaker models.
Innovative canvas
Made with dividers and welds to optimize product recollection Diameter of 6,5 meters with possibility to extend to 8 meters
Canvas height
1,6 meters
The entrance mouth of the umbrella at the foot of the tree is 95 cm wide
La largeur de la bouche d’entrée du parapluie au pied de l’arbre est de 95 cm.
Loading capacity of 400 kg
The unloading operation is carried out by opening the lower hatch.
Optional peeler for PARK inverted umbrella
Receiving hopper with a total loading capacity of 250 kg of peeled almonds
Possibility to adapt the umbrella for other products through a removable cover system
Two side peelers to increase peeling capacity, optimizing productivity
Quick and easy removal of peeler shafts
High-power motors with bidirectional rotation to prevent the peelers from blocking

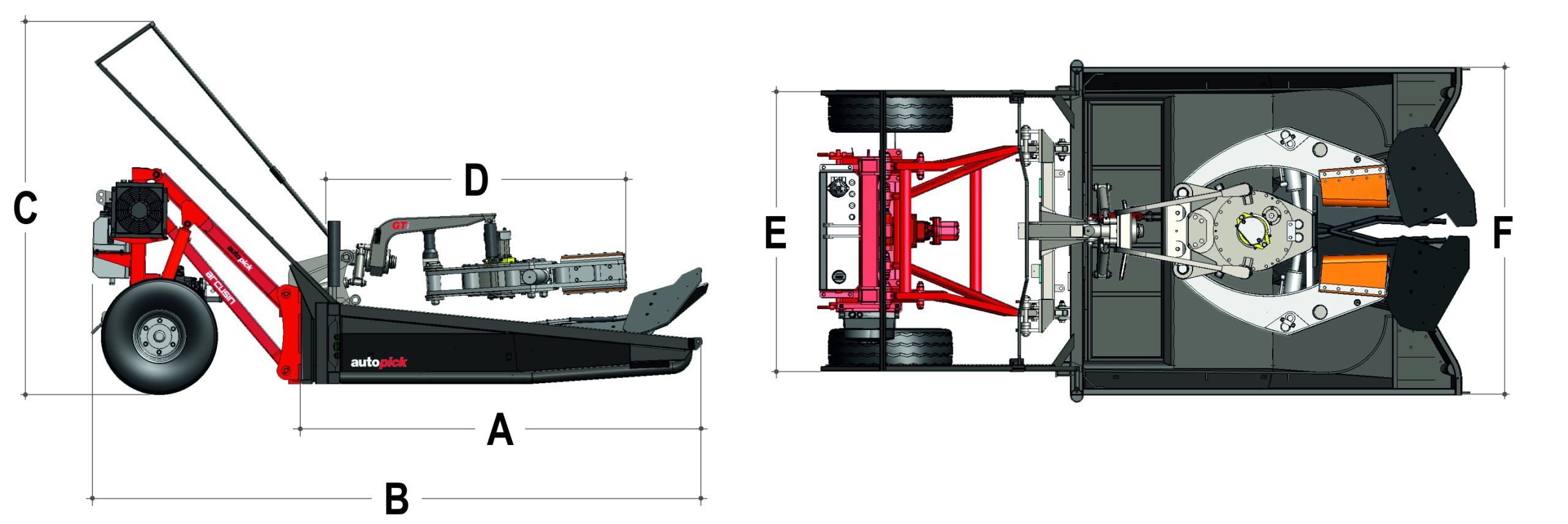

Weights and dimensions
The same machine works for bales of different heights, no adaptation is needed.
AutoPick GTi
Tare
2.300 kg
A
2.765 mm
B
4.215 mm
C
2.430 mm
D
2.000 mm
E
2.280 mm
Park
Tare
2.980 kg
A
6.500 mm
B
6.500 mm
C
1.600 mm
Do you need more information? Contact us!
